Parsing SAS using ANTLR and several use cases for the outcome

Igor Khorlo

2018-07-05 SUGUKI 📍 London

Announcement

SU
GG

SAS User Groups in Europe

Poland

The problem

Background – My Story

Object Pascal (~2003)
Delphi (Anders Hejlsberg, C#, Typescript)
- IntelliSense / Autocompletion
- Code generation

What basic functionality do you expect from an IDE?

Autocompletion
IntelliSense
Code checking
Indentation support

Better IDE

Having a good visual response is important. Even Tony Barr spoke about this – SAS BEGINNINGS

Parsing SAS

What actually SAS language is?

9.2? 9.4?
SAS Base?
GTL?
CASL?

What is ANTLR

Generates LL(*) parser. It takes grammar on the input and generates a parser in a target language (originally Java, also python, go, js, ts) on the output, also provides several helpers to walk the parse tree.

How parser generated by ANTLR works

ANTLR Grammar

expr: expr ( '*' | '/' ) expr
    | expr ( '+' | '-' ) expr
    | INT
    | ID
    | '(' expr ')’
    ;

ID  : [A-Za-z_][A-Za-z_0-9]* ; // match identifiers
INT : [0-9]+ ;                 // match integers
NL  : '\r'? '\n' ;             // newlines
WS  : [ \t\r\n\f]+ -> skip ;   // skip whitespace

Parse Tree for

`a + b * (var3 / 2)`

Problems faced

Comments

/* This comment's bytes are processed character by character. */

* Asterisk comments are read token by token but quotes are treated like single tokens.;

%* This macro comment is read token by token until the semicolon.;

%macro test(dsin);
   %* Shouldn't the single quotation mark be ignored since comment?;
   proc print data=&dsin;
   run;
%mend;
data test;
   i=1;
run;
%test(test)

't the single quotation mark be ignored since comment?;
proc print data=&dsin;
run;
%mend;
data test;
   i=1;
run;
%test(test)

Results in:

WARNING 32-169: The quoted string currently being processed has become more than 262 characters long. You may have unbalanced quotation marks.

Usage Note 32684: Using comments within a macro

Keywords as Identifiers

if = 1;
then = 2;
else = 3;
end = 4;

if if then
  then = else;
else
  else = end;

drop = then;

data _null_;
  if = 1; and = 0;
  if if eq and and and eq if then
    put 'if = and';
  else
    put 'if ^= and';
run;

Languages compositions

PROC SQL
PROC IML
PROC LUA
PROC GROOVY

Variety of syntax in general

1 =>: 2
1 ~ne 2
1 not <=: 2
1 ~>=: 2
?-y = 2 with CHARCODE System Option.

SAS Macro

%let d = dat;
%let end_token_pointer = end_token;
%let end_token = n;
%let if = __if;

%macro __if(c);if &c%mend;

&d.a smthng;
    set sashelp.class;
    %&if(%str(age > 18))then do;
        bmi = weight / height ** 2;
    e&&&end_token_pointer..d;
run;

SAS Auto-correction

prc freq dta=sashelp.class ordor=freqq;
   tble sex / chsq;
runn;

WARNING 14-169: Assuming the symbol PROC was misspelled as PRC.

What you can do having an AST

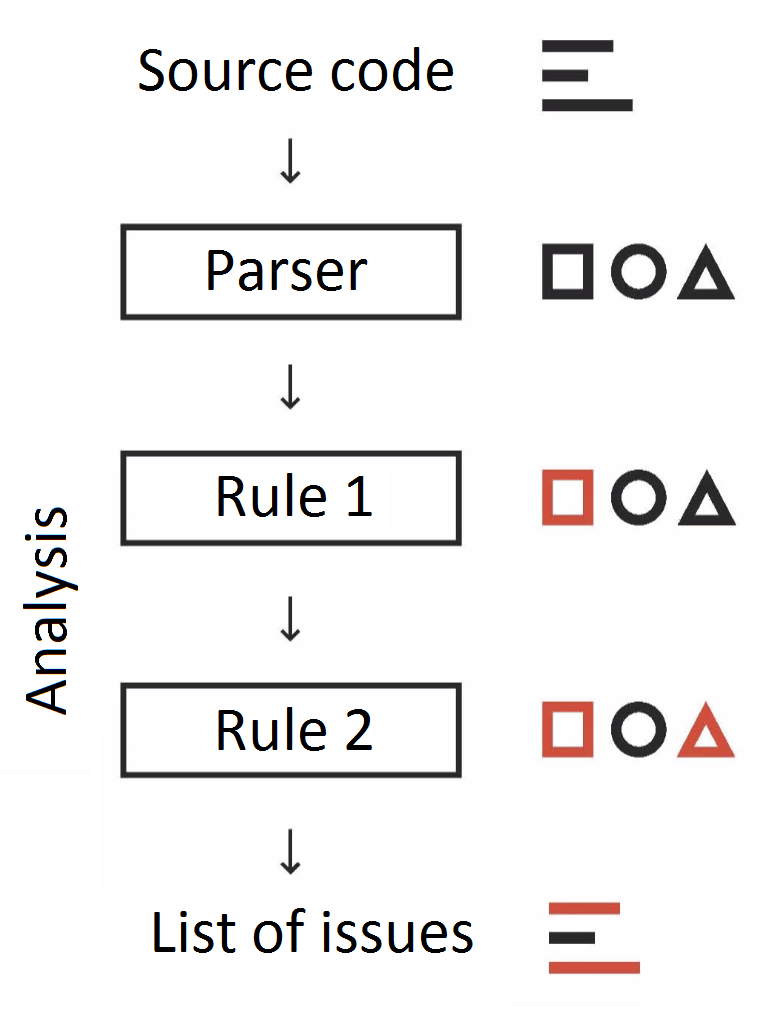

Static Code Analyzer – linter for SAS – saslint

$ saslint
Inspecting 10 files
...EE.W..N..

Offences:

test-errors.sas:3:26: E:22-322: Missing ';' at the end of the assignment statement.
    f = cat(3, 5, 3 + 5)
                        ^

test-errors.sas:5:25: E:79-322: Missing closing ')'.
    f = cat(3, 5, 3 + 5;
                       ^

test-warnings.sas:4:9: W: Expression is always true.
    if length(str) > 0 then do;
       ^^^^^^^^^^^^^^^

test-notes.sas:7:5: N: This DATA step uses no executable statements and can be replaced by the DATASETS procedure.
data class;
^^^^

10 files inspected, 5 offenses detected.

What is checked?

Macro call parameters mismatches
Wrong number of arguments in function calls
Type mismatches
Unbalanced quotes
Unmasked characters in macro quoting functions
Truncation mistakes
Spellchecks inside string literals

Dataflow graph

/* ... */

data mess;
  set dm ae2 sv;
  s = '
    data abc;
      set a b c;
      set d;
      ss = ''
        data aabbcc;
          set aa bb cc;
        run;
      '';
    run;
  ';
run;

/* ... */

Styleguide Control

DATA CLASS CLASS18;
SET SASHELP.CLASS;
BMI=WEIGHT/HEIGHT**2;
IF AGE > 18 THEN DO; OUTPUT CLASS18; END;
ELSE OUTPUT CLASS;
PROC FREQ DATA = CLASS18;
TABLES BMI;
RUN;

data class class18;
  set sashelp.class;
  bmi = weight / height ** 2;
  if age > 18 then do;
    output class18;
  end;
  else do;
    output class;
  end;
run;

proc freq data = class18;
  tables bmi;
run;

Transpiling

Language to language compiler.

non-SAS

Typescript
Coffescript

SAS

PROC DS2DS2
SAS V9 to SAS Viya
SAS Macro to PROC LUA

The End

Contact info
